Lawn Tractor HT HT3810 HT3810K2 SA HT3810-5200001-5299999 TENSIONER ARM@TENSIONER PULLEY - Bland's Lawn & Garden Equip.

  1. Product Lines
  2. Lawn Tractor
  3. HT
  4. HT3810
  5. HT3810K2 SA HT3810-5200001-5299999

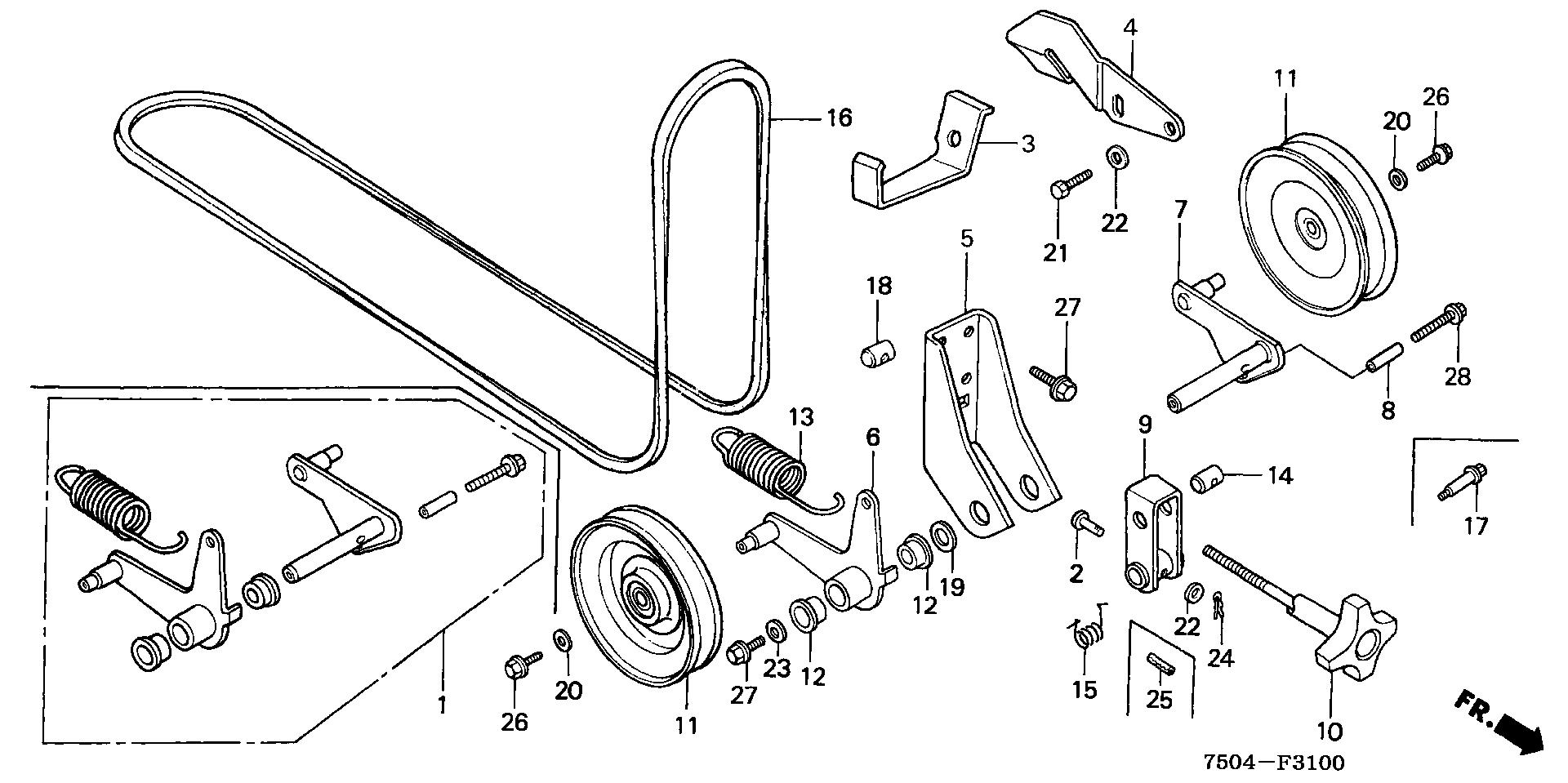

  6. TENSIONER ARM@TENSIONER PULLEY

WARNING: California Prop 65 Information

Ref No
Part Number
Description
Serial Range
Qty
Price
Ref No
2
Part Number
 24555-612-000
Description
 PIN, ROLLER (6MM) (NOT AVAILABLE)
Serial Range
 1000001 - 5202605
Ref No
2
Part Number
 90701-752-831
Description
 PIN (6X25)
Serial Range
 5202606 - 9999999
Qty
Price
 $5.25
Ref No
4
Part Number
 75178-750-000
Description
 STOPPER, BELT DRIVEN
Serial Range
 1000001 - 9999999
Qty
Price
 $25.24
Ref No
5
Part Number
 75510-750-000
Description
 BRACKET, TENSIONER (NOT AVAILABLE)
Serial Range
 1000001 - 9999999
Ref No
6
Part Number
 75520-750-A00
Description
 ARM, TENSIONER (1) (NOT AVAILABLE)
Serial Range
 1000001 - 9999999
Ref No
7
Part Number
 75530-750-A00
Description
 ARM, TENSIONER (2) (NOT AVAILABLE)
Serial Range
 1000001 - 9999999
Ref No
8
Part Number
 75531-750-700
Description
 COLLAR, BELT STOPPER (NOT AVAILABLE)
Serial Range
 5202169 - 9999999
Ref No
9
Part Number
 75540-750-000
Description
 LEVER, TENSIONER
Serial Range
 1000001 - 9999999
Qty
Price
 $33.79
Ref No
10
Part Number
 75550-750-010
Description
 KNOB, TENSIONER (NOT AVAILABLE)
Serial Range
 1000001 - 9999999
Qty
Price
 $22.51
Ref No
11
Part Number
 75560-750-000
Description
 PULLEY, TENSIONER
Serial Range
 1000001 - 9999999
Qty
Price
 $64.89
Ref No
12
Part Number
 75572-750-000
Description
 BUSH (17X23X19)
Serial Range
 1000001 - 9999999
Qty
Price
 $12.35
Ref No
13
Part Number
 75573-750-030
Description
 SPRING, TENSIONER
Serial Range
 1000001 - 9999999
Qty
Price
 $9.41
Ref No
14
Part Number
 75574-750-010
Description
 PIN, TENSIONER
Serial Range
 5009128 - 9999999
Qty
Price
 $4.10
Ref No
16
Part Number
 76182-750-003
Description
 V-BELT, DECK (LB-107)
Serial Range
 1000001 - 9999999
Ref No
16
Part Number
 76182-750-013
Description
 V-BELT, DECK (LB-107)
Serial Range
 1000001 - 9999999
Qty
Price
 $109.77
Ref No
17
Part Number
 90104-751-000
Description
 BOLT, P.T.O. CLUTCH LEVER
Serial Range
 1000001 - 5202168
Qty
Price
 $11.03
Ref No
18
Part Number
 90301-750-000
Description
 NUT, TENSIONER (NOT AVAILABLE)
Serial Range
 1000001 - 9999999
Ref No
19
Part Number
 90401-750-000
Description
 COLLAR, TENSIONER BRACKET
Serial Range
 1000001 - 9999999
Qty
Price
 $5.61
Ref No
20
Part Number
 90453-292-010
Description
 WASHER, SHIFT DRUM STOPPER
Serial Range
 1000001 - 9999999
Qty
Price
 $6.87
Ref No
21
Part Number
 92101-06014-4J
Description
 BOLT, HEX. (6X14)
Serial Range
 1000001 - 9999999
Qty
Price
 $1.79
Ref No
22
Part Number
 94101-06800
Description
 WASHER, PLAIN (6MM)
Serial Range
 1000001 - 9999999
Qty
Price
 $0.80
Ref No
23
Part Number
 90534-750-000
Description
 WASHER (8.5MM)
Serial Range
 1000001 - 9999999
Qty
Price
 $5.08
Ref No
24
Part Number
 94251-06400
Description
 PIN, LOCK (6MM) (NOT AVAILABLE)
Serial Range
 1000001 - 9999999
Ref No
26
Part Number
 95701-06016-08
Description
 BOLT, FLANGE (6X16)
Serial Range
 1000001 - 9999999
Qty
Price
 $1.85
Ref No
27
Part Number
 95701-08014-08
Description
 BOLT, FLANGE (8X14)
Serial Range
 1000001 - 9999999
Qty
Price
 $2.23
Ref No
28
Part Number
 95701-08055-08
Description
 BOLT, FLANGE (8X55)
Serial Range
 5202169 - 9999999
Qty
Price
 $3.07
